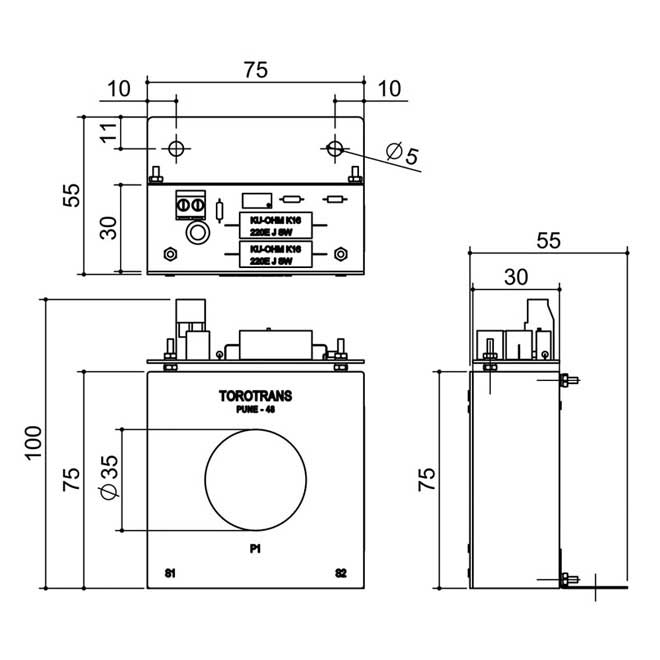

  All dimensions are in mm.
•
•

Specifications

Primary Current Range : 50 - 600 Amp

Secondary Current : 0.1 or 0.2 Amp

VA Rating : 1 VA

Accuracy Class : 1

Frequency : 50 / 60 Hz.

Secondary Voltage : 9.90 - 10.10 Volt @100Ω

H.V. Test : Between Primary to secondary 2 KV.

Winding : Class F

Insulation : Class B

Operating Temperature : -15 to 70⁰C

Termination : Flying Lead Red - Fixed Nut-Bolt / U Type Lug   S1 - start, S2 - End.

Mounting : As per above drawing

Features / Applications

• Current transformers are used for electrical measuring instruments and / or electrical protective devices.
• They are very useful in high power circuits where the current is large.

NOTE : We also manufacture nonstandard current transformer to meet the customer's specification
Due to constant attempt to improve the design and due to change in the quality of material available, the figures given above are for general guidance only and are subject to confirmation.
