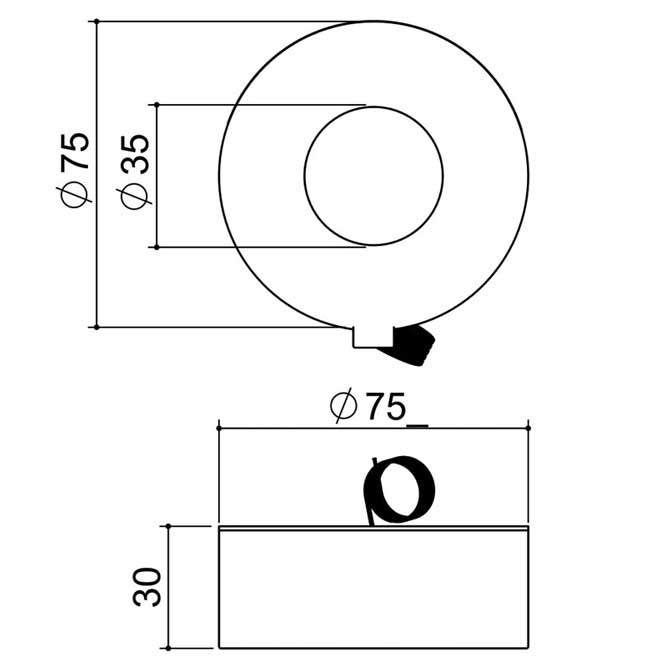

  All dimensions are in mm.
•
•

Specifications

Primary Current Range : 50 - 300 Amp

Secondary Current : 0.1 Amp

VA Rating : 1 VA

Accuracy Class : 1

Frequency : 50 / 60 Hz.

Secondary Voltage : 9.90 - 10.1 Volt @ 100Ω

H.V. Test : Between Primary to secondary 2 KV.

Winding : Class F

Insulation : Class B

Operating Temperature : -15 to 70⁰C

Termination : Flying Lead Red - start, Black - End.

Features / Applications

• Current transformers are used for electrical measuring instruments and / or electrical protective devices.
• They are very useful in high power circuits where the current is large.

NOTE : We also manufacture nonstandard current transformer to meet the customers specification.
Due to constant attempt to improve the design and due to change in the quality of material available, the figures given above are for general guidance only and are subject to confirmation.
